No.3B3383 Industrial Air Spring 4xM10 Screw GUOMAT NO. 3B7383-3/8 Bellow

Name: No3B3383 Industrial Air Spring 4xM10 Screw GUOMAT NO 3B738338 Bellow
Brand: GUOMAT
Price: 1 USD

Wholesale No.3B3383 Industrial Air Spring 4xM10 Screw GUOMAT NO. 3B7383-3/8 Bellow from china suppliers

Brand Name : GUOMAT

Model Number : 3B7383-3/8

Certification : ISO/TS16949:2009

Place of Origin : Guangdong,China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Steel cover plate , rubber bellows

GUOMAT NO. : 3B7383-3/8

Gas Hole : 3/8NPT

Four Nuts : 4xM10

Screw Center Distance : 140 mm

Cover Plate Diameter : 289 mm

Pressure Ability : 0.2-0.8 M Pa

Natural Height : 381 mm

Contact Now

GUOMAT NO. 3B7383-3/8 Bellow No.3B3383 Industrial Air Spring 4xM10 Screw

3B7383-3/8 Technical Parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcsXM10

Screw Center Distance of Top Cover Plate : 140mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsXM10

Screw Center Distance of Bottom Cover Plate : 140mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/8NPT

❸ Cover Plate

Top Cover Plate Diameter: 289 mm

Bottom Cover Plate Diameter: 289 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 405 mm

Rubber Bellows Natural Diameter :353 mm

The Working Stroke : MAX 460 mm to MIN 110 mm

Maximum Height : 460 mm

Minimum Height :110 mm

Compression Height : 350 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

Pneumatic application - static eigenvalue force F [kN]

pressure p	[bar]	3	4	5	6	7	8	vol V[l]
height H [mm]	380	17.7	23.8	30.0	36.4	42.9	49.1	31.0
	300	21.3	28.4	36.1	43.4	50.7	58.0	25.4
	220	24.3	32.3	40.4	48.5	56.6	64.6	19.4
	140	27.3	36.3	45.4	54.5	63.4	72.0	12.4

No.3B3383 Industrial Air Spring 4xM10 Screw GUOMAT NO. 3B7383-3/8 Bellow

Product Tags:

air helper springs

air suspension parts

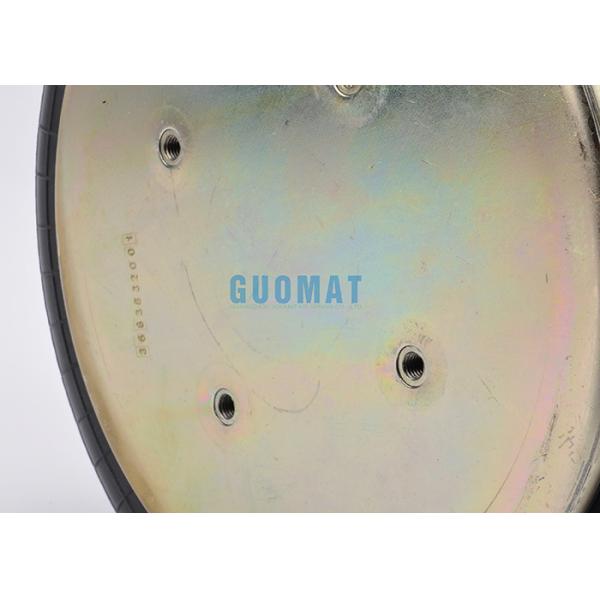

No.3B3383 Industrial Air Spring 4xM10 Screw GUOMAT NO. 3B7383-3/8 Bellow Images
