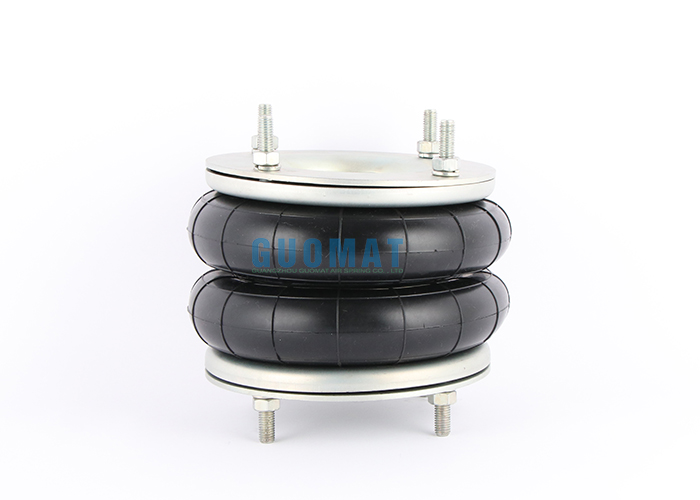

ContiTech FD 138-18 DS Industrial Air Spring With Air Inlet G1/2 Bolts M10
GUOMAT 2Y205130 Cross OEM :
GUOMAT Part Number:2Y205130
Continental Part Number: FD 138-18 DS 66505
Continental Part Number: FD 138-181/2 M10
Continental Part Number: FD 138-18 DS 1/2 M10
Continental Part Number: FD-138 DS G1/2
Continental Part Number: FD 138-18 DS G1/2 M10
Continental Part Number: FD 138-18 DS 1 FD138-18DS 1 FD13818DS
Continental Part Number:: FD 138-18 / FD138-13-181 1
AIRTECH:140136
AIRTECH PROD. NO.:113330
BLACKTECH:2C 303-270 PO1
CONTINENTAL:FD138-18
DUNLOP FRANCE:SP2782 NB
FIRESTONE REF:.W01-R58-4055
GRANNING:16136
Contitech Part Number: FD 138-18 DS 66505
Contitech Part Number: FD 138-181/2 M10
Contitech Part Number: FD 138-18 DS 1/2 M10
Contitech Part Number: FD-138 DS G1/2
Contitech Part Number: FD 138-18 DS G1/2 M10
Contitech Part Number: FD 138-18 DS 1 FD138-18DS 1 FD13818DS
Contitech Part Number:: FD 138-18 / FD138-13-181 1
Specifications of Style 8" x2
| Compressed height | Metric |
| 2.95" | Air inlet |
| Maximum deployment height | 1/2" |
| 9.84" | series |
| The maximum diameter | D |
| 9.06" | lowest temperature |
| Maximum inflation pressure | -76°F |
| 120 psi | Maximum temperature |
| Maximum stroke | 158 degrees F |
| 6.89" | Bellows type |
| Inlet type | Double zigzag |
| | weight |
| | 1 pound. |
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 184 mm
Bottom Cover Plate Diameter (Width): 184 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Diameter max at 7 bar:225MM
Stroke of Rubber Bellows:75mm-225m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max force at stroke 25 mm and 5 bar 12,3 kN
Rubber material Standard up to 70°C natural rubber
FD 138-18 VP,
Bellows type industrial air spring,
Double spin,
138 square centimeters of effective area,
18 cm maximum stroke,
Bellows only
