Rubber Industrial Triple Convolution Air Spring S-300-3 Used For Machine And Equipment
F-300-3 Data Comparison With Other Model
GUOMAT Number
F-300-4
F-300-3
F-300-2
F-300-1
Reference Number
S-300-4
S-300-3
S-300-2
S-300-1
| GUOMAT NO. | Reference NO. | Height H(mm) | Common Maximum Travel (mm) | Compression Max Outside Diameter (mm) | Effective Area(cm2) | Volume(L) |
| Design Height (mm) | Max Height (mm) | Min Height(mm) |
| F-300-4 | S-300-4 | 206 | 326 | 111 | ±80 | 360 | 710 | 15.5 |
| F-300-3 | S-300-3 | 152 | 242 | 82 | ±60 | 360 | 710 | 11.2 |
| F-300-2 | S-300-2 | 98 | 158 | 53 | ±40 | 360 | 710 | 7.4 |
| F-300-1 | S-300-1 | 72 | 117 | 40 | ±30 | 400 | 710 | 5.6 |
| GUOMAT NO. | Reference NO. | Load (KN) | Dynamic Spring Constant (n/mm) | Natural Vibration Frequency (Hz) | Maximum Internal Pressure (MPa) | Internal Pressure Failure(MPa) |
| F-300-4 | S-300-4 | 34.7 | 324 | 1.5 | 0.88 | 3.9-4.9 |
| F-300-3 | S-300-3 | 34.7 | 490 | 1.9 | 0.88 | 3.9-4.9 |
| F-300-2 | S-300-2 | 34.7 | 745 | 2.3 | 0.88 | 3.9-4.9 |
| F-300-1 | S-300-1 | 34.7 | 1108 | 2.8 | 0.88 | 2.9-3.9 |
Application of air spring in punching equipment
The industrial rubber air spring can control the height with high precision: the rubber air spring adjusts the working height by means of the internal air pressure. Industrial airbags do not have static friction with other components. Automatic adjustment of system pressure ensures a stable working height in the event of catastrophic material carrying capacity. Effectively prevent resonance: The air spring damping system can be preset to two natural frequencies, so you can prevent resonance by switching the natural frequency.
Effective noise reduction: Industrial air springs can reduce structural transmission noise. Because it does not have the spring vibration that ordinary coil springs produce, it does not generate "noise generation" by itself. It can be said that industrial air springs play an indispensable role in the modern industrial field.
Air springs are also highly technical, and we can perform many projects in more perfect conditions with our ever-evolving modern technology, allowing more equipment to last longer in a more stable environment and ensure the safety of use .

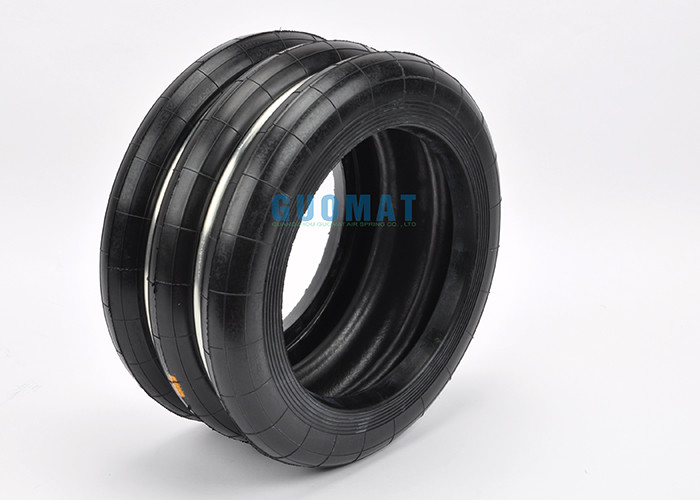

Picture Of Product
FAQ
Q.1.Is the sample available?
A:YES,Usually we send the samples by TNT,DHL,FEDEX or UPS,it will take around 2-10 days for our customers to receive them,but charge all customer will cost related to the samples, such as sample cost and airmail freight.
Q2.What is your warranty term?
A:There is a 12months warranty for our export products has run outfrom the date of the shipment.
Q3.Can i use my own logo and design on products?
A:YES,OEM is welcomed.
Q4.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friends and we sincerely do business and make friends with them, no matter where they comefrom.
