LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine

Name: LHF3002182 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
Brand: GUOMAT
Price: 59.9 USD

Wholesale LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine from china suppliers

Brand Name : GUOMAT

Model Number : LHF300/218-2

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Spring Material : Rubber + Steel

Warranty Period : 1 Year

Package : Carton/Cartons

Rubber Type : High-Quality

Application : For Industrial

Position : Front or Rear

Pressure : 0.2-0.8 M PA

Sample : Available

Contact Now

LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine

Product Description

Model Number: LHF300/218-2

Flange: JBF

Number of Convolution: 2

Nominal Diameter: Ø300mm

Outer Diameter: Ø380mm

End Outer Diameter: Ø308mm

Height: Ø226mm

Product Performance

Applicable Medium	Air	Water
Work Pressure	Mpa	≤0.7
Burst Pressure	Mpa	≥2.0
Fatigue Test	Times	≥1 Million Times
Minimum Compression Height	mm	90
Safe Extension Height	mm	270

The air spring can be used on the vibration platform, which can effectively reduce the vibration damage caused by external factors and the internal structure of the machine, thereby prolonging the service life of the machine and increasing the utilization rate of various products. So air springs can protect mechanical equipment by reducing vibration. Air springs can be used in air conditioners, centrifugal fans, small chillers, water pumps, etc.; rubber shock absorbers are widely used in instruments, equipment cabinets, etc.

LHF Type Air Spring

LHF100/166-2	LHF100/238-3	LHF150/212-2	LHF150/304-3
LHF200/212-2	LHF200/304-3	LHF230/120-1	LHF230/218-2
LHF230/316-3	LHF250/255-2	LHF250/218-2	LHF250/316-3
LHF256/92-1	LHF256/166-2	LHF280/218-2	LHF280/316-3
LHF300/218-2	LHF300/316-3	LHF320/186-2	LHF320/240-2
LHF320/350-3	LHF340/226-2	LHF400/218-2	LHF400/316-3
LHF440/218-2	LHF440/316-3	LHF500/220-2	LHF500/320-3
LHF580/262-2	LHF580/384-3

HF Type Air Spring

HF80/90-1	HF80/142-2	HF95/70-1	HF100/166-2
HF100/238-3	HF104/66-1	HF115/77-1	HF120/132-2
HF125/112-1	HF150/140-2	HF170/120-1	HF174/126-1
HF180/156-1	HF180/152-2	HF190/170-2	HF190/248-3
HF192/140-2	HF208/90-1	HF230/116-1	HF230/120-1
HF230/140-2	HF240/100-1	HF240/165-2	HF250/255-2
HF264/90-1	HF290/105-1	HF300/255-2	HF310/160-1
HF320/203-2

GF Type Air Spring

GF40/60-1	GF100/140-2	GF100/166-2	GF100/238-3
GF120/102-1	GF150/206-2	GF150/298-3	GF200/206-2
GF200/298-3	GF230/206-2	GF230/298-3	GF250/206-2
GF250/298-3	GF280/206-2	GF280/298-3	GF300/218-2
GF300/316-3	GF320/120-1	GF320/215-2	GF320/310-3
GF400/215-2	GF400/310-3	GF400/215-2	GF440/310-3
GF500/220-2	GF500/320-3	GF500/420-4	GF580/262-2
GF580/384-3

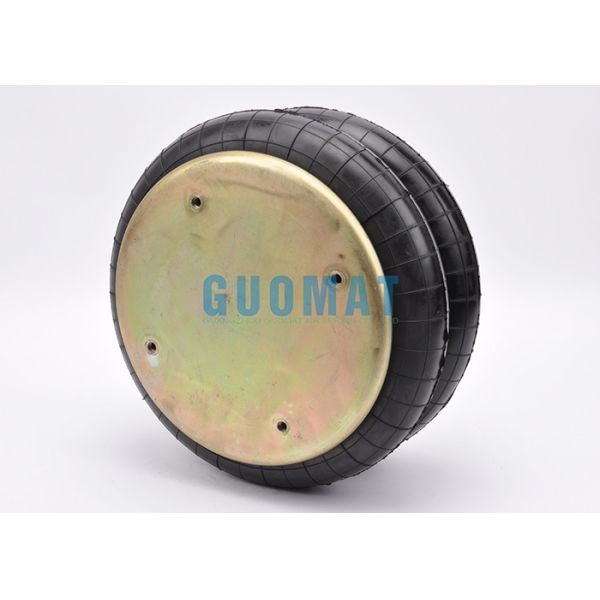

The Real Pictures
