W01-358-7731 Firestone Industrial Air Suspension Air Spring With 1/4" NPT Centered Port

Name: W013587731 Firestone Industrial Air Suspension Air Spring With 14quot NPT Centered Port
Brand: GUOMAT
Price: 49.9 USD

Wholesale W01-358-7731 Firestone Industrial Air Suspension Air Spring With 1/4" NPT Centered Port from china suppliers

Brand Name : GUOMAT

Model Number : 1B7731

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $49.9-59.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Warranty : 12 Months

Material : Metal+Rubber

Air Hole : 1/4NPTF

Color : Black

OEM NO. : W01-358-7731

Bellow Type : Single Convoluted Type

The Stroke : 50mm-115mm

Function : Reduce Shock

Contact Now

W01-358-7731 Firestone Industrial Air Suspension Air Spring With 1/4" NPT Centered Port

Product Description

Item	Air Spring	Model NO.	1B7731
Material	Natural Rubber+High Quality Steel	Warranty	12 Months
MOQ	10 Pieces	Color	Black

Original Equipment Manufacturer Number

Firestone Part Number:W01-358-7731

Firestone Part Number:W01 358 7731

Firestone Part Number:W013587731

Firestone Part Number:WO1-358-7731

Firestone Part Number:WO13587731

Firestone Part Number:WO1 358 7731

Firestone Part Number:w01-358-7731

Firestone Part Number:w013587731

Firestone Part Number:w01 358 7731

Technical Data

Top Cover Plate Diameter:Ø115mm

Gas Hole / Air Inlet:1/4NPTF

Screw Center Distance of Top Cover Plate:44.5mm

Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Bottom Cover Plate Diameter:Ø115mm

Screw Center Distance of Bottom Cover Plate:44.5mm

Bottom Cover Plate Screw(Nut)Tooth:2X3/8-16UNC

The Rubber Bellow MAX Diameter:165mm

The Working Stroke:50mm-115mm

We have two kind of 1B7731 Air Bag

GUOMAT NO. :1B7731

The air hole is located in the middle of the top cover plate.

GUOMAT NO. :1B7731B

The air hole is located off-center on the upper cover

Single Convoluted Air Bellow

GUOMAT NO.	Firestone NO.	Contitech NO.	Gas Hole
1B6165	W01-M58-6165	FS 120-9	G3/4
1B6374	W01-M58-6374	FS 200-10	G3/4
1B7008	W01-358-7008	FS 330-11 474	1/4NPTF
1B7009	W01-358-7009	FS 330-11 468	1/4NPTF
1B6994	W01-358-6994	FS 330-11 647
1B7451	W01-358-7451		1/4NPTF
1B7564	W01-358-7564	FS 120-10	1/4NPTF
1B7725	W01-358-7725		1/4-18NPTF
1B7095	W01-358-7095		1/4NPTF
1B7551	W01-358-7551		1/4NPTF
1B7598	W01-358-7598
1B7094	W01-358-7094		3/4NPT

Contact Us
We operate auto parts air springs, shock absorbers, industrial air springs and other shock absorption products.
If you have any questions about air springs, please contact me.
We will be your best choice, we will provide you with professional services.

The Drawings for W01-358-7731 Firestone Air Spring

W01-358-7731 Firestone Industrial Air Suspension Air Spring With 1/4" NPT Centered Port

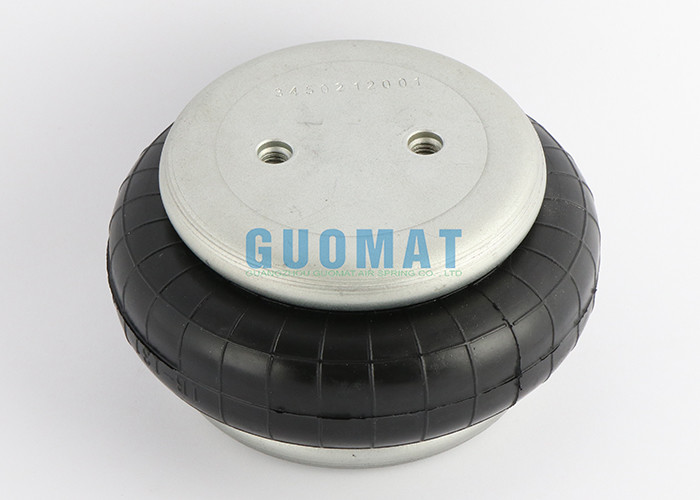

The Real Pictures
