S-160-2 Presses Convoluted Air Spring With Cover Plate Industrial Rubber Bellows

Brand Name : GUOMAT

Model Number : F-160-2

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $69.9/pc-$89.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Rubber and Aluminium Cover

Warranty : 12 Months

Color : Black

Number of Bellows : 2 Convolution

Package : Brown Carton Box

Gross Weight : 2.35KG

YOKOHAMA : S-160-2

Package Dimensions : 110mm*220mm*220mm

Contact Now

S-160-2 Presses Convoluted Air Spring With Cover Plate Industrial Rubber Bellows

Product Description

Item

Value

OEM Number

YOKOHAMA Shock Absorber S-240-3

Spring Material

Rubber

Spring Type

Air Spring

Warranty

12 Months

Place of Origin

GuangDong China

Model

Barious Equipments

Yokohama Shock Absorbers S-240-3

Yokohama air spring

For Yokohama from Japan

Yokohama air suspension

Application

This item can fits for many kinds of machines

1. Actuator for concrete block machinery
2. Mineral equipment air spring,
3. Reversing actuators in roller conveyor systems
4. Actuator for lifting of casting shakeout box
5. MTB
6. Actuators on bottle and carton filling machines
7. Bin-tilting actuator (for ease of use)
8. Paper machine equipment air spring air spring,
9. Actuators on the transfer table
10. Clamping device for the upper cover of the vibrating screen
11. Actuators in blasting booths
12. Actuator for glass grinding chamber
13. Industrial Laundry Equipment Actuators
14. Crawling assembly line machine

Application of air spring in punching equipment

With the continuous development of industrial modernization, many industries use punching equipment. However, when the punching equipment is working, the vibration of the machine will cause wear and noise. The solution to this problem is to install an air spring. The function of the air spring is shock absorption and buffering. The air spring uses air as the medium and has a long service life, which can effectively maintain the punch.

Technical Data of S-160-2

GUOMAT NO.

Reference NO.

Height H(mm)

Common Maximum Travel (mm)

Compression Max Outside Diameter (mm)

Effective Area(cm2)

Volume(L)

Design Height (mm)

Max Height (mm)

Min Height(mm)

F-160-4

S-160-4

206

306

111

±70

220

200

4.7

F-160-3

S-160-3

152

227

82

±53

220

200

3.4

F-160-2

S-160-2

98

148

53

±35

220

200

2.1

GUOMAT NO.

Reference NO.

Load

(KN)

Dynamic Spring Constant

(n/mm)

Natural Vibration Frequency

(Hz)

Maximum Internal Pressure

(MPa)

Internal Pressure Failure(MPa)

F-160-4

S-160-4

9.8

118

1.7

0.88

2.9-3.9

F-160-3

S-160-3

9.8

157

2.0

0.88

2.9-3.9

F-160-2

S-160-2

9.8

255

2.5

0.88

2.9-3.9

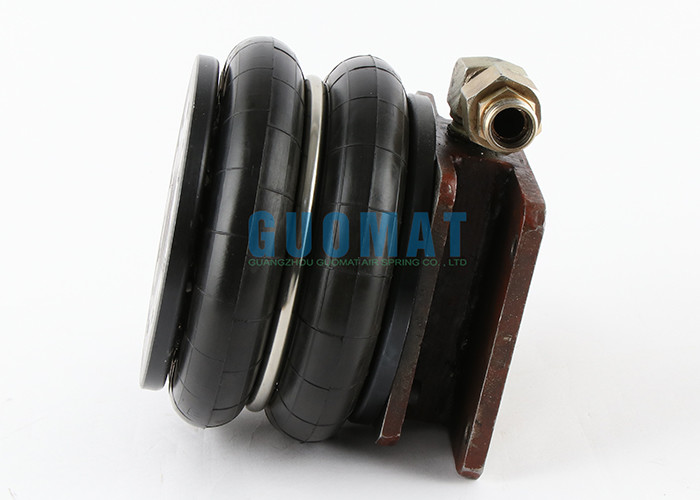

Product Picture

S-160-2 Presses Convoluted Air Spring With Cover Plate Industrial Rubber BellowsS-160-2 Presses Convoluted Air Spring With Cover Plate Industrial Rubber Bellows
