Natural Rubber Triple Convoluted Air Spring 3B20F-2P03 Industrial Air Bellow Suspension

Brand Name : GUOMAT

Model Number : 3B20F-2P03

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6PCS

Price : $69.9-79.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Rubber + Steel

Warranty : 12 Months

Sample and OEM : Available

Operation : Gas-filled

Product Structure : Triple Convoluted

Fuction : Reduce Shock

Quality : 100 % Tested

Other Name : Air Bags,Air Actuator

Contact Now

Natural Rubber Triple Convoluted Air Spring 3B20F-2P03 Industrial Air Bellow Suspension

Product Information

Product Name:

Industrial Air Spring

Description:

Triple Convoluted Air Spring Bags

MOQ:

10 PCS

Warranty:

12 Months

Material:

Rubber+Steel

Package:

Carton/Cartons

Payment:

L/C ;T/T ;Western Union;Paypal

Port of shipment

Huangpu ,Guangzhou

Shippment:

By sea, By air, by DHL Fedex

Air Spring 3B20F-2P03 Technical Data

Spring Cover Plate

Top Cover Plate Diameter: 160mm

Bottom Cover Plate Diameter: 160mm

Spring Gas Hole

Gas Hole: 1/2 NPT

Spring Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 223 mm

The Working Stroke : MAX 400 mm to MIN 200 mm

Spring Screw Or Nut

Top Cover Plate Screw (Nut) Tooth : 2X 3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2X 3/8-16UNC

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut : 44.5 mm

Advantages of Air Spring Shock Absorbers
1. Excellent shock absorption ability
GUOMAT air spring shock absorbers have the highest vibration isolation capacity of all types of vibration shock absorbers. The natural frequency of the system can be as low as 1Hz. If an additional plenum is installed, the natural frequency of the system can be even lower.

2. Stable shock absorption effect
The unique feature of GUOMAT air spring shock absorbers is that the natural frequency of the system does not change significantly when the load changes. This feature, combined with precise height control, makes it particularly suitable for installing GUOMAT air spring shock absorbers at various mounting points in equipment with unbalanced loads.

GUOMAT 3B-Type Air Spring

GUOMAT

CONTITECH

FIRESTONE

GOODYEAR

3B5602

FD 300-29 546

W01-358-7994

3B12-328

3B5603

FD 300-29 547

W01-358-7995

3B12-329

3B5604

FD 300-29 520

W01-358-7996

3B12-335

3B5605

FD 300-29 430

W01-358-8006

3B12-304

3B5606

FD 300-29 431

W01-358-8008

3B12-300

3B5607

FD 300-29 432

W01-358-8010

3B12-301

3B5608

FD 300-29 433

W01-358-8016

3B5609

FD 300-29 469

W01-358-8025

3B5610

FD 300-29 466

W01-358-8027

3B12-310

3B5611

FD 300-29 498

W01-358-8030

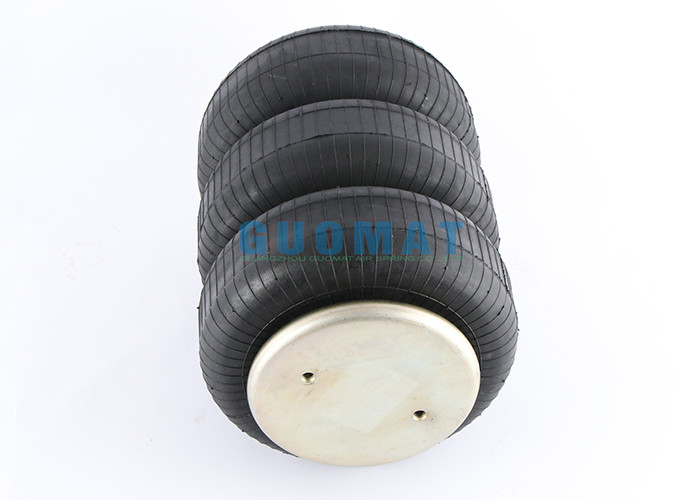

Product Photo

Natural Rubber Triple Convoluted Air Spring 3B20F-2P03 Industrial Air Bellow SuspensionNatural Rubber Triple Convoluted Air Spring 3B20F-2P03 Industrial Air Bellow Suspension
