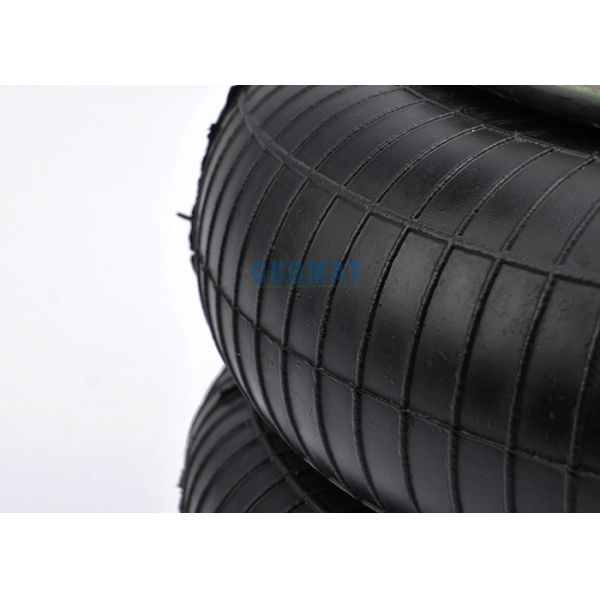

Firestone 3B12-301 Goodyear Air Spring Pneumatic Bellows Actuators W01-358-8010

Name: Firestone 3B12301 Goodyear Air Spring Pneumatic Bellows Actuators W013588010
Brand: GUOMAT
Price: 69.9 USD

Wholesale Firestone 3B12-301 Goodyear Air Spring Pneumatic Bellows Actuators W01-358-8010 from china suppliers

Brand Name : GUOMAT

Model Number : 3B8010

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6PCS

Price : $69.9-79.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Type : Air Spring

Spring Material : Rubber + Steel

Product Warranty : 12 months

Condition : Brand-New

Port : Huangpu Port

Package : Standard packing or customized

Air Inlet : 1/4NPT

Natural Height : 297mm

Contact Now

High Quality Durable Pneumatic Bellows Actuators W01-358-8010 Firestone 3B12-301 Goodyear Air Spring

Product Description

FIRESTONE W01-358-8010

FIRESTONE W01 358 8010

FIRESTONE W013588010

FIRESTONE WO1-358-8010

FIRESTONE WO1 358 8010

FIRESTONE WO13588010

FIRESTONE 8010

CONTITECH FT330-29 432

CONTITECH FT 330-29 432

CONTITECH FT330 29 432

CONTITECH FT 330 29 432

GOODYEAR 3B12-301

GOODYEAR 3B 12-301

GOODYEAR 3B12 301

GOODYEAR 3B 12 301

GOODYEAR 578933100

GOODYEAR 578-933-1-00

TRIANGLE 6334

TRIANGLE 4432

Ridewell	1003588010C
Leland	Sc2119
Oshkosh	8013
Tafco

Detailed Technical Parameters

Top Cover Plate Diameter: 231mm
Bottom Cover Plate Diameter: 231mm
Air Inlet: 1/4 NPT ; 3/4NPT
Screw Center Distance Of Top Cover Plate: 157.5mm
Screw Center Distance Of Bottom Cover Plate: 157.5mm
Screw And Gas Hole Distance Of Top Cover Plate: 73mm
Top Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Rubber Bellow Natural Diameter: 325mm
Natural Height: 297mm

Every Standard Air Spring Consists of 4 Layers.

The inner layer which actually contains the air.
The first layer of fabric reinforced rubber applied

at a specific angle.

The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

The cover to protect the bias fabric plies.

Goodyear Air Speing VS Goodyear Air Bellow

Part Number	Bellows Number	Part Number	Bellows Number
1B9-202	578913201	1B12-301	578913301
1B5	579913500	1B8-1	579913532
1B5-2	579913502	1B5-2	579913502
2B9-606	578923211	2B9-229	578923202
2B9-228	556238325	2B9-216	578923202
2B9-204	578923202	2B9-207	578923202
2B9-210	578923206	2B9-200	578423202
2B9-202	578423202	2B9-216	578423202
2B9-230	578923202	2B9-265	578923202
2B9-280	578923206	2B9-245	578923202
2B10-226	578923250	2B9-206	578923200
2B9-209	578923202	2B8-550	579923530
2B8-153	579923530	2B8-150	579923530
2B8-153	579923530	2B8-550	579923530
2B9-253	578923206	2B9-352	578923206
2B9-246	578923206	2B9-218	578923206/2
2B9-250	578923206	2B9-253	578923206
2B9-254	578923206	2B9-251	578923206
2B12-425	578923309	2B12-311	578923309
2B12-411	578923309	2B12-412	578923309
2B12-309	578923309	2B12-316	578923309
2B12-320	578923309	2B12-307	578923309
2B12-433	578923309	2B12-445	578923309
2B12-410	578923309	2B12-312	578923309
2B12-313	578923309	2B12-459	578923309
2B12-426	578923309	2B12-319	578923309
2B12-406	578923309/305	2B12-432	578923309

Firestone 3B12-301 Goodyear Air Spring Pneumatic Bellows Actuators W01-358-8010
