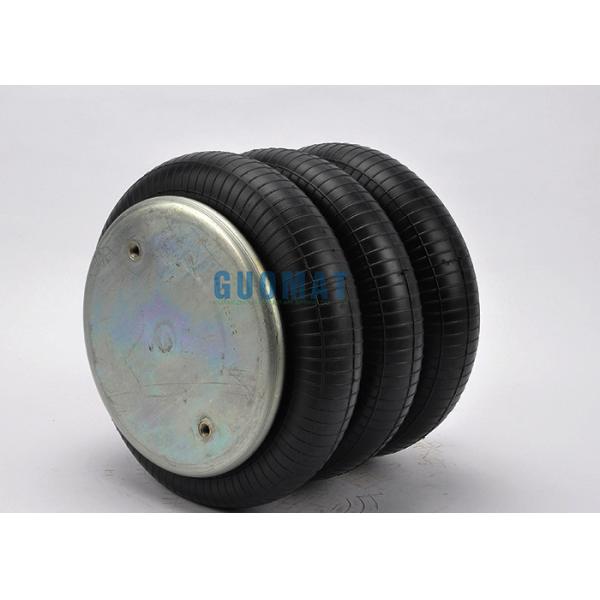

Natural Rubber Air Spring Replace Firestone W01-358-8027 Goodyear 3B12-310 Triple Convoluted Air Bag

Name: Natural Rubber Air Spring Replace Firestone W013588027 Goodyear 3B12310 Triple Convoluted Air Bag
Brand: GUOMAT
Price: 69.9 USD

Wholesale Natural Rubber Air Spring Replace Firestone W01-358-8027 Goodyear 3B12-310 Triple Convoluted Air Bag from china suppliers

Brand Name : GUOMAT

Model Number : FT 330-29 466

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6PCS

Price : $69.9-79.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Name : Industrial Air Spring

Spring Material : Rubber + Steel

Product Warranty : 12 Months

Condition : Brand-New

Stud : 1/4NPT 3/4-16UNC

The Stroke : 117-460mm

Number of Convolution : 3

Application : Paper Machine

Contact Now

Natural Rubber Air Spring Replace Firestone W01-358-8027 Goodyear 3B12-310 Triple Convoluted Air Bag

Product Description

Cross Reference Number
Firestone	W01-358-8027	Firestone	W01 358 8027
Firestone	W013588027	Firestone	W01-358-8038
Firestone	W013588038	Firestone	W01 358 8038
Firestone	W01-358-8029	Firestone	W013588029
Firestone	W01 358 8029	Contitech	FT330-29 466
Contitech	FT 330-29 466	Goodyear	3B12-310
Goodyear	3B 12-310	Goodyear	3B12 310
Goodyear	578933100	Goodyear	578-933-1-00
Triangle	6334	Triangle	4466

Arvin Meritor (Air Spring) 200117

Suspension (Air Spring) 200117

Silent Drive (Air Spring)

Histeer (Air Spring)

W01-358-8027 Firestone Air Bellow Technical Data

Technical Data	Top Cover Plate Diameter:231mm
	Bottom Cover Plate Diameter:231mm
	Combo Stud: 1/4NPT ; 3/4-16UNC
	Bolt/Stud: 1/2-13UNC
	Rubber Bellows MAX Diameter:330mm
	The Working Stroke:MAX 460 mm to MIN 117 mm
	Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Screw Center Distance of Top Cover Plate:157mm
	Screw Center Distance of Bottom Cover Plate:157mm

Characteristics of Air Springs

Requires little maintenance
Quality Assurance Stress Testing
Excellent shock absorption
Replace damaged OEM airbags
Increase the life of industrial equipment

Goodyear Air Speing VS Goodyear Air Bellow

Goodyear Number	Bellow Number	Goodyear Number	Bellow Number
2B12-432	578923309	2B12-427	578923309
2B12-320	578923309	2B12-311/454	578923309
2B14-356453	578923353/1	2B12-434	578923310
2B12-345	578923315	2B12-346/440	578923315
2B12-440	578923315	2B14-476	578923356
2B14-383	578923356	2B8-150	579923530
2B8-153	579923530	2B8-550	579923530
2B8	579923530	3B12-335	578933100
3B12-304	578933100	3B12-300	578933100
3B12-301	578933100	3B12-310	578933100
2B12-313	578933350	2B12-459	578933350

Natural Rubber Air Spring Replace Firestone W01-358-8027 Goodyear 3B12-310 Triple Convoluted Air Bag
