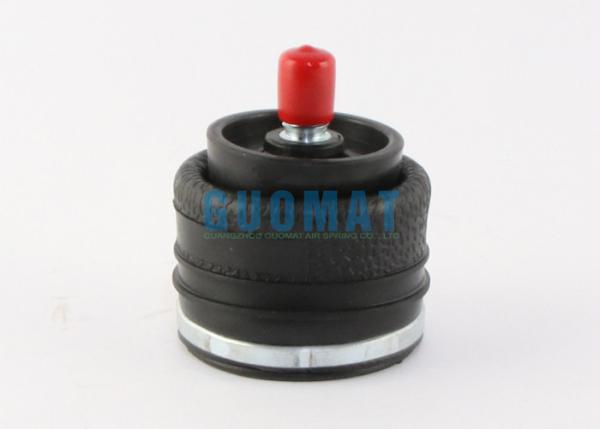

Firestone W02-358-3000 Shaped Sleeve Air Spring W02-358-3001 2-Ply Cab Air Shock Absorber
OEM Cross Number
Part Number: G3014
Brand: GUOMAT
Goodyear Number: 1S3-013 (Sleeve Type Air Spring )
Goodyear Number: 1S3 013 (Sleeve Type Air Spring )
Goodyear Number: 1S 3-013 (Sleeve Type Air Spring )
Firestone Number: 3000 (Sleeve Type Air Spring )
Firestone Number: W02-358-3000 (Sleeve Type Air Spring )
Firestone Number: W02 358 3000 (Sleeve Type Air Spring )
Firestone Number: W023583000 (Sleeve Type Air Spring )
Firestone Number: WO2-358-3000 (Sleeve Type Air Spring )
Firestone Number: WO2 358 3000 (Sleeve Type Air Spring )
Firestone Number: WO23583000 (Sleeve Type Air Spring )
Firestone Number: 3001 (Sleeve Type Air Spring )
Firestone Number: W01-358-3001 (Sleeve Type Air Spring )
Firestone Number: W01 358 3001 (Sleeve Type Air Spring )
Firestone Number: W013583001 (Sleeve Type Air Spring )
Firestone Number: WO1-358-3001 (Sleeve Type Air Spring )
Firestone Number: WO1 358 3001 (Sleeve Type Air Spring )
Firestone Number: WO13583001 (Sleeve Type Air Spring )
Prevost Number: 950208 (Sleeve Type Air Spring )
GUOMAT G3014 Air Suspension Technical Data
The Diameter of Top Cover Plate: 74.5mm
The Diameter of Bottom Plate: 61.2mm
Air Fitting: 1/8-27 NPTF
Rubber Bellows Max Diameter: 91.5mm
Rubber Bellows Min.Diameter: 38mm
Rubber Bellows Natural Diameter: 80mm
Maximum Height :91 mm
Minimum Height :38 mm
Compression Height : 53 mm
Top Cover Plate Screw (Nut) Tooth : 1pcX5/16-18unc
Screw Center Distance of Top Cover Plate : in the middle
Bottom Cover Plate Screw (Nut) Tooth : 1pcX5/8-11unc
Screw Center Distance of Bottom Cover Plate : in the middle
| Dynamic Characteristics at 2.5 in.Design Height (Pequired for Airmount isolator design only) |
| Volume@60PSIG=9.2in2 | Natural Frequency |
| Gage Pressure (PSIG) | Load(ibs.) | Spring Rate(ibs./in.) | CPM | HZ |
| 40 | 210 | 336 | 235 | 3.92 |
| 60 | 330 | 467 | 224 | 3.73 |
| 80 | 450 | 619 | 220 | 3.67 |
| 100 | 570 | 740 | 214 | 3.57 |
| Force Table |
| Assembly Height(in.) | Volume@60 PSIG(in3) | Pounds Force |
| @20PSIG | @40PSIG | @60PSIG | @80PSIG | @100PSIG |
| 2.0 | 6 | 110 | 230 | 340 | 460 | 580 |
Applicable to the Following Industries
Press machine
Conveyor belt
Elevator
Packing Machine
Industrial actuator
Sleeve Type Rolling Lobe Air Springs For Driver's Seats
Air spring driver's seats give the operator's workplace a more ergonomic and comfortable design, thereby reducing fatigue and work-related health risks.
As a result, GUOMAT sleeve type cab air springs are used in commercial vehicle driver's seats. Because of their comfort construction they can easily be integrated into the seat frame. The force is transmitted from the seat backing to the air spring through a control-sleeve lever or a so-called scissors construction.
Thanks to the air suspension, passengers do not feel bumps on the road. In addition, the car does not bank when the driver is cornering, since the suspension constantly keeps the optimal position of the car body. This makes driving much easier.
