Contitech FD120-17 Continental Air Bellow Double Convoluted Air Spring For Printing Press

Brand Name : GUOMAT

Model Number : 2B120-19

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Rubber Bellow and Aluminum Cover

Warranty : 1 Year Warranty

Function : Reduce Shock

Quality : 100 % Tested

Contitech : FD 120-19

Screw Tooth : 2 pcs X M8X1.25

Color : Black

Air Inlet : G3/4

Contact Now

Contitech FD120-17 Continental Air Bellow Double Convoluted Air Spring For Printing Press

Product Description

Part Number

FD120-17 CI

Manufacturer

CONTITECH

Manufacturer Warranty

12 Months

Main Material

Natural Rubber

Weight

2.5KG

Packing Size

24*24*24CM

Cover Plate Dia.

135mm

Screw Center Distance

70mm

Gas Hole

G3/4

Rubber Bellow Dia.

215mm Max.OD

Screw (Nut)

M8X1.25

Number of Screw(Nut)

4 Pieces

The Natural Height

167mm

The Stroke

75mm-230mm

OEM Number

CONTITECH Part Number: FD120-17
CONTITECH Part Number: FD 120-17
BOSCH Part Number: 822419042
DUNLOP(FR) Part Number: SO8201
FESTO Part Number: EB-215-155
GOODYEAR Part Number: 2B 7-540
GOODYEAR Part Number: 2B7-540
NORGREN Part Number: PM/31082(8X2)
PIRELLI Part Number: T2684181
TAURUS KF Part Number: 218
WEFORMA WBZ Part Number: 300-E1
AIRKRAFT Part Number: 113053

CONTITECH Bellow Number: 603N
FIRESTONE FLEX Bellow Number: 26
FIRESTONE Bellow Number: W01-358-0142
PHOENIX Bellow Number: 2B O7R
AIRKRAFT Bellow Number: 114050

Double Convolution Bellows

Contitech No.

Max.diameter(mm)

Max.stroke(mm)

Min.height(kN)

Max.stroke(kN)

Standrad air inlet

Force with p=8 bar

FD 40-10 CI

145

100

7.4

2.5

G1/8

FD 70-13 CI

165

128

11.6

2.6

G1/4

FD 110-15 CI

203

156

16.5

2.9

G3/4

FD 120-17 CI

215

155

18.0

6.3

G3/4

FD 120-20 CI

218

193

19.6

6.6

G3/4

FD 200-19 CI

250

200

26.1

5.7

G3/4

FD 200-22 CI

255

218

26.2

7.0

G3/4

FD 200-25 CI

260

248

25.4

8.2

G3/4

FD 330-22 CI

325

230

46.4

14.3

G3/4

FD 330-30 CI

340

283

49.0

13.7

G3/4

FD 530-22 CI

385

233

65.5

21.8

G3/4

FD 530-30 CI

400

273

71.2

21.6

G3/4

FD 530-35 CI

405

313

47.8

21.0

G3/4

FD 960-22 CI

444

225

101.0

37.0

G3/4

FD 1330-25 CI

518

243

145.4

46.5

G3/4

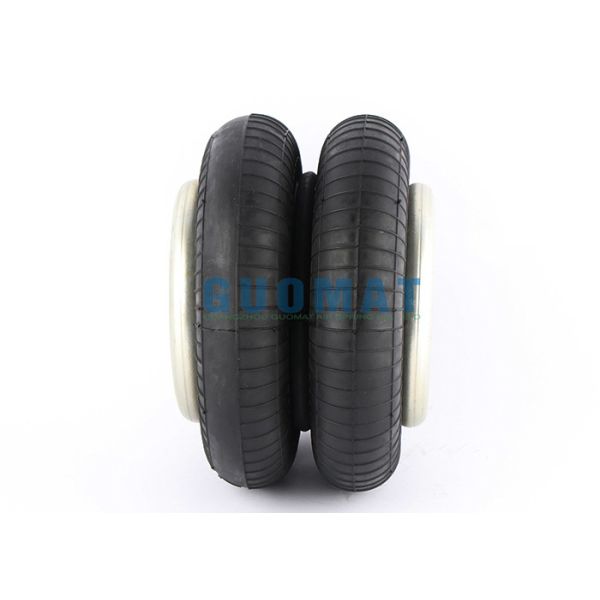

The Real Pictures

Contitech FD120-17 Continental Air Bellow Double Convoluted Air Spring For Printing PressContitech FD120-17 Continental Air Bellow Double Convoluted Air Spring For Printing Press
