Norgren PM/31062 Industrial Air Spring PM/31061 Air Bellows With Aluminum Top and Bottom Cover
Product Description
Air springs are devices that use compressed air to provide suspension and damping functions for various industrial applications. GUOMAT 6X2 air spring can replace Norgren PM/31062. Air springs are available in a variety of sizes, configurations and materials to meet different application requirements. They are commonly used in heavy trucks, buses and other vehicles as well as industrial machinery and equipment.
Original Equipment Manufacturer
| GUOMAT 6X2 | GUOMAT 6X1 |
| Firestone W01R584070/WO1R584070 Firestone W01 R58 4070/WO1 R58 4070 Firestone W01-R58-4070/WO1-R58-4070 Dunlop 6''x2 / 6x2 / 6''X2 / 6X2 Dunlop SP2917 / SP 2917 Contitech FD76-14 DI / FD 76-14 DI Contitech FD76-14 / FD 76-14 Norgren PM/31062 / PM 31062 / PM31062 | Firestone W01R584078/WO1R584078 Firestone W01 R58 4078/WO1 R58 4078 Firestone W01-R58-4078/WO1-R58-4078 Dunlop 6''x1 / 6x1 / 6''X1 / 6X1 Dunlop SP2913 / SP 2913 Contitech FD76-7 DI / FD 76-7 DI Contitech FD76-7 / FD 76-7 Norgren PM/31061 / PM 31061 / PM31061 |
Technical Data
GUOMAT 6X2
Top cover plate diameter: 152.5mm
Threaded holes in the top cover plate: 4pcs M8
Center distance of threaded holes on top cover plate: 127mm
Bottom cover plate diameter: 152.5mm
Threaded holes in the bottom cover plate: 4pcs M8
Center distance of threaded holes on bottom cover plate: 127mm
Maximum outer diameter: 178mm
Required installation space: 195mm
Max height: 195mm
Min.height: 80mm
PM/31061
NominalØ(inch)xconvolutions: 6X1
Stroke(mm): 55mm
Installation min. height(mm): 55mm
Installation max. height: 110mm
Port size: G1/2
PM/31062
NominalØ(inch)xconvolutions: 6X2
Port size: G1/2
Stroke(mm): 115mm
Installation min. height(mm): 80mm
Installation max. height: 195mm
The Industrial Application
Industrial equipment for damping of the air spring technology application, effectively improving the work efficiency of equipment and the safe use of equipment life.Air spring is not like an ordinary cylinder type device having internal control rod, piston, or sliding type sealing device, thus greatly reducing the use of a pneumatic or hydraulic cylinder cost, for customers to win more economic benefits.
Characteristic.
● The low cost, wide range of specifications
● The long service life, no maintenance and lubrication, without the need for internal control rod or piston
● no friction effect, soft medium
● The bending capacity, lateral load capacity, compact original height

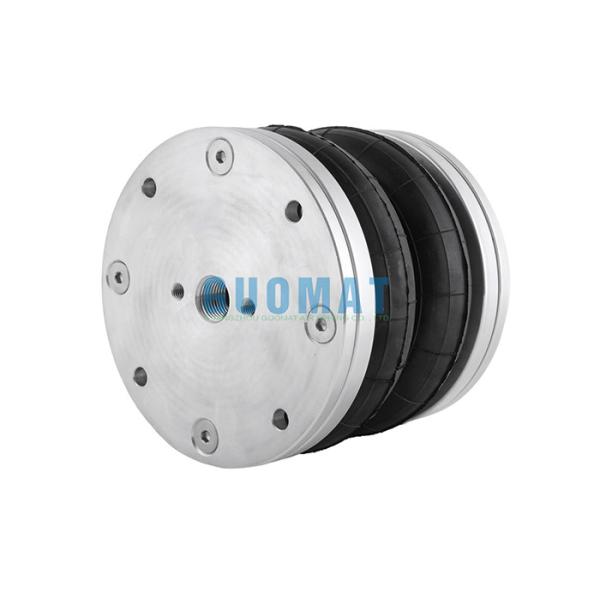

Real Pictures: GUOMAT 6X2 Double Convoluted Air Spring
