2B7X7P01 Industrial Rubber Air Bellows OEM FD120-17 Contitech Suspension Air Spring Bag

Name: 2B7X7P01 Industrial Rubber Air Bellows OEM FD12017 Contitech Suspension Air Spring Bag
Brand: GUOMAT
Price: 59.9 USD

Wholesale 2B7X7P01 Industrial Rubber Air Bellows OEM FD120-17 Contitech Suspension Air Spring Bag from china suppliers

Brand Name : GUOMAT

Model Number : 2B7X7P01

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Warranty : 12 Months

Material : Rubber + Steel

MOQ : 10 Pieces

Other Name : Rubber Air Bellows

Weight : 2.15kg

Packing Size : 24*24*24(cm)

Spring Type : Double Convoluted Type

Design Height : 189mm

Contact Now

2B7X7P01 Industrial Rubber Bellows OEM FD120-17 Contitech Suspension Air Spring Bag

Product Description

Item	Industrial Air Springs	Brand	GUOMAT
Model No.	2B7X7P01	Warranty	12 Months
Material	Rubber+Steel	MOQ	10 PCS
Weight	2.15KG	Packing Size	242424(cm)
Contitech	FD120-17	Contitech	FS 120-17

Technical Data: GUOMAT 2B7X7P01
Top Cover Plate Diameter: Ø131mm
Air Fitting Hole: 1/4NPT
Threaded Hole: 2XM8X1.25
Center Distance Between Threaded Holes: 54mm
Distance Between Threaded Hole and Air Hole: 27mm
Bottom Cover Plate Diameter: Ø131mm
Threaded Hole: 2XM8X1.25
Center Distance Between Threaded Holes: 54mm
The Rubber Bellow Natural Outer Diameter: Ø176mm
Design Height: 189mm
Deflection(Height Min.): 65mm
Deflection(Height Max.): 230mm
Working Stroke: 165mm
Loading Cap. at 3.0bar: 3.33kN
Loading Cap. at 7.0bar: 9.07kN

2E7X7	FD120-17
Cover Plate Diameter: Ø131mm Air Fitting Hole: 1/2NPT Threaded Hole: 2X3/8-16UNC Center Distance Between Threaded Holes: 69mm Distance Between Threaded Hole and Air Hole: 33mm Threaded Hole of Bottom Cover Plate: 1X3/8-16UNC The Rubber Bellow Natural Outer Diameter: Ø176mm Design Height: 189mm Deflection(Height Min.): 65mm Deflection(Height Max.): 230mm Working Stroke: 165mm	Cover Plate Diameter: 5.55in Air Fitting Hole: 3/4NPT Threaded Hole: 2X3/8UNC,0.59in Center Distance Between Threaded Holes: 2.76in The Rubber Bellow Max.Diameter: 8.46in Deflection(Height Min.): 3.0 in Deflection(Height Max.): 9.1in Working Stroke: 6.1 in

Air Springs for Industrial Machinery and Equipment
Air spring is an industrial auxiliary equipment with extremely high functionality and reliability, and has become an indispensable part of modern industrial production. High-quality air springs can not only reduce vibration and noise, but also improve production efficiency and reduce production costs. GUOMAT air springs are made of high-quality rubber and steel. The steel surface has a natural oxide layer, which has excellent corrosion resistance and is not easy to rust; the rubber part is used as an air bag, which can bear extremely high weight and automatically adjust the pressure.

Please Contact Us
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know

We are looking forward to establishing business with you.

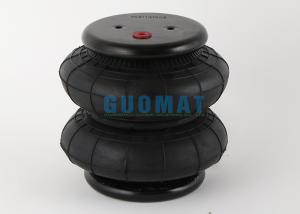

GUOMAT 2B7X7P01 Industrial Air Bag Real Pictures
2B7X7P01 Industrial Rubber Air Bellows OEM FD120-17 Contitech Suspension Air Spring Bag
