FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
Product Details
| Item | Industrial Air Spring | Material | Rubber+Steel |
| Warranty | 12 Months | Application | For Industrial |
| Number of Convolution | 1 | MOQ | 10 Pieces |
| Function | Reduce Shock | Other Name | Air Bellow, Air Bags |
Contitech OEM Information
Continental Contitech FS200-10
Continental Contitech FS 200-10
Continental Contitech FS200-10 CI
Continental Contitech FS 200-10 CI
Continental Contitech FS 200-10 CI 3/4 NPT
Continental Contitech FS 200-10 CI 1/4 NPT
Continental Contitech FS 200-10 CI 3/4 NPT OS
Continental Contitech FS 200-10 CI 1/4 NPT OS
About GUOMAT 1B200-10 Air Spring
GUOMAT Number: 1B200-10
Replace Firestone number: W01-M58-6374
Replace Firestone number: W01 M58 6374
Replace Firestone number: W01M586374
Replace Contitech Number: FS 200-10
Replace Phoenix Number: SP1B12
Replace Phoenix Number: SP 1B12
Replace Phoenix Number: SP 1B 12
Dunlop(FR) Number: 9''1/4X1
Dunlop(FR) Number: S09101
Bosch Number: 822419004
Festo Number: EB-250-85
Norgren Number: PM/31091
Norgren Number: PM31091
Norgren Number: PM 31091
Norgren Number: 8 1/4 X1
Contitech FS200-10 Single Convolution Air Actuator
- Rubber bellows only
- With crimped plates,G1/4 air inlet A=44.5mm excentrical
- With crimped plates and bumper A=44.5mm excentrical
- With crimped plates,G3/4 air inlet A=38.1mm excentrical
- With stainless steel crimped plates,G3/4 air inlet A=38.1mm excentrical
Vibration Isolation – Dynamic Characteristic Values
Design height H: recommended 110mm, minimum 90mm
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V(I) |
| Force (Load) | [kN] | 6.1 | 8.2 | 10.4 | 12.6 | 14.8 | 17.2 | 2.9 |
| Spring rate | [N/mm] | 166 | 212 | 258 | 304 | 348 | 393 |
| Natural frequency | [Hz] | 2.6 | 2.5 | 2.5 | 2.5 | 2.4 | 2.4 |

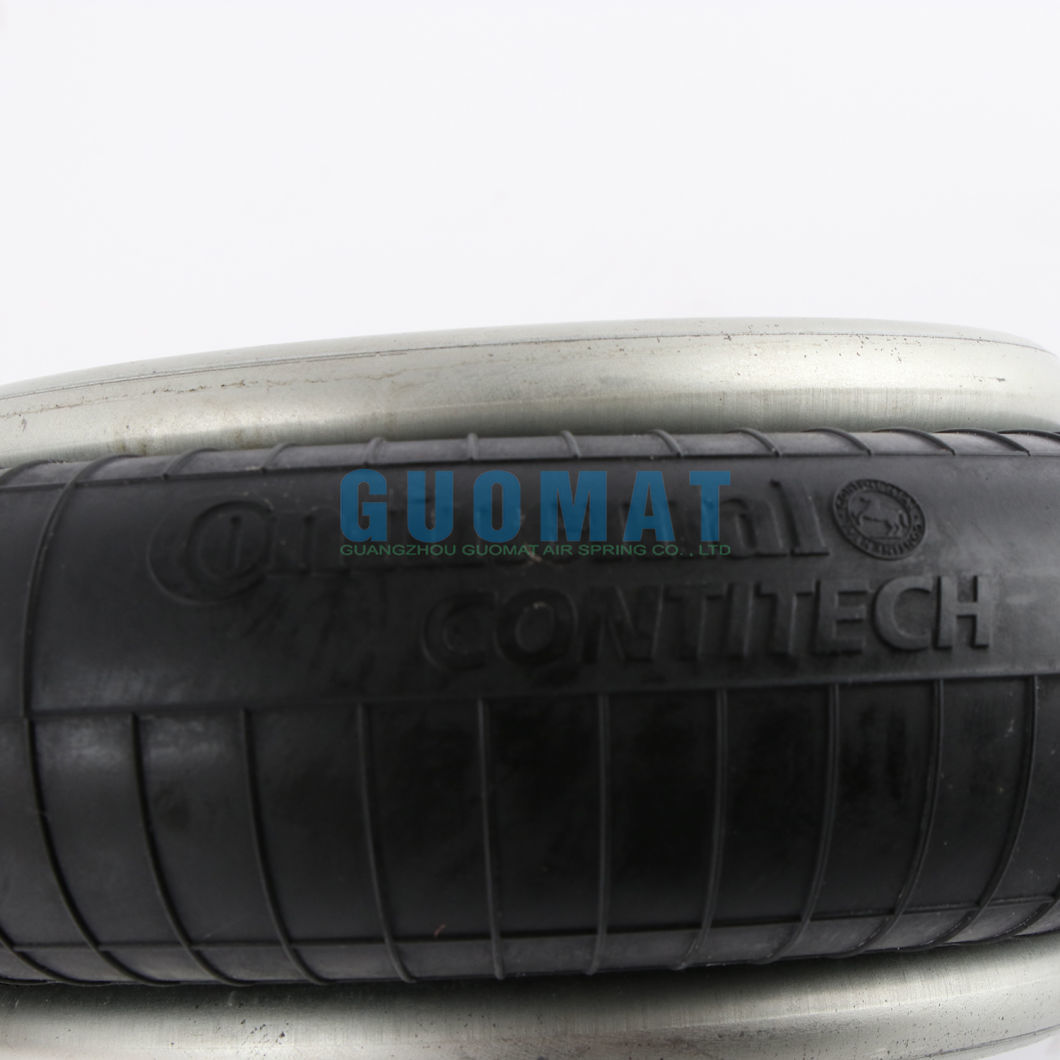

Product Images
