Norgren M/31123 Air Spring for Industrial Machine Steel 12"X3 Rubber Bellows
3B13×3T Technical Data
| Cover Plate
Top Cover Plate Diameter: 260 mm
Screw Center Distance of Top Cover Plate: 232 mm
Bottom Cover Plate Diameter: 260 mm
Screw Center Distance of Bottom Cover Plate: 232 mm |
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth: 4×M10
Bottom Cover Plate Screw(Nut) Tooth: 4×M10 |
| Gas Hole/Air Inlet/Air Fitting
Air Hole: G 1/2 |
Rubber Bellow
Rubber Bellow Max. Diameter: 300 mm
Space Required: 325 mm
Natural Height: 252 mm |
OEM Cross Reference
Norgren Part Number: M/31123
Norgren Part Number: M31123
Norgren Part Number: M 31123
Firestone Part Number: W01-R58-4062
Firestone Part Number: W01 R58 4062
Firestone Part Number: W01R584062
Dulop Part Number: 12''×3
Dulop Part Number: 12'×3
Dulop Part Number: 12×3
Dulop Part Number: SP1542
Dulop Part Number: SP 1542
Contitech Part Number: FT 412-32 DS
Contitech Part Number: FT412-32 DS
Contitech Part Number: FT41232 DS
Parker Part Number: 9109051
GUOMAT Air Spring Advantages
- GUOAMT manufactures efficient, strong, and premium 1B5330 air springs for all your vehicle steering needs. Not only is it efficient in performance, it is also extremely durable, providing long-lasting quality without compromising its effectiveness.
- These 3B12×3T air springs are made of high-quality materials, including metal, which ensures maximum stability, durability, and sustainability for demanding use, and is also equipped with the latest features for consistent, optimal performance. These products are certified and tested by regulatory boards to ensure safe use and superior quality.
- When purchasing our products, you can also enjoy a host of after-sales services, including low-cost maintenance, installation guidance, and more. The GUOAMT air springs here are environmentally friendly, with features such as anti-corrosion and anti-rust, and have a longer service life.
We Produce Other Triple Convoluted Air Suspensions with Flange
| GUOMAT NO. | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 2 3/4''×3 | | 2 3/4''×3 | SP2910 | FT 22-6 DI | | 9109010 |
| 3B4.5×3T | W01R584035 | 4 1/2''×3 | SP2895 | FT 44-15 DI | PM/31043 | 9109402 |
| 3B6×3T(AI) | | 6''×3(Al) | SP2923 | FT 76-20 DS | PM/31063 | 9109007A |
| 3B6×3T(Steel) | W01R584095 | 6''×3(Steel) | SP2861 | FT 138-26 DS | M/31063 | 9109007 |
| 3B8×3T | W01R584056 | 8''×3 | SP2863 | FT 138-26 DS | M/31083 | 9109017 |
| 3B10×3T | W01R584059 | 10''×3 | SP1539 | FT 210-32 DS | M/31103 | 9109031 |
| 3B12×3T | W01R584062 | 12''×3 | SP1542 | FT 412-32 DS | M/31123 | 9109051 |
| 3B14.5×3T | W01R584065 | 14 1/2''×3 | SP1558 | FT 614-36 DS | M/31143 | 9109069 |
| 3B16×3T | W01R584068 | 16''×3 | SP2141 | FT 816-40 DS | M/31163 | 9109177 |

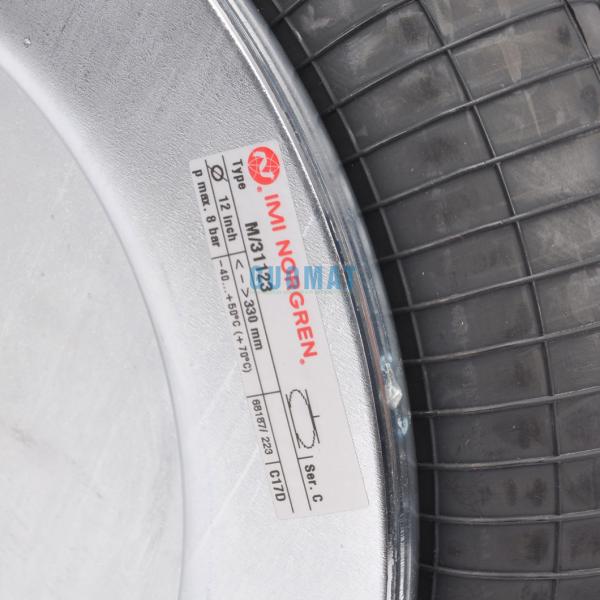

3B12×3T Detailed Pictures
