Brand Name : Contitech
Model Number : FS 412-10 DS
Certification : ISO/TS16949:2009
Place of Origin : Germany
MOQ : 6pcs
Price : $169.9-199.9/pc
Payment Terms : T/T, Western Union, L/C
Supply Ability : 1000pcs/week
Delivery Time : 2-8 work days
Packaging Details : Strong Carton Box Or As Customers Need
Contitech : FS 412-10 DS
Spring Material : Rubber Steel Aluminium
Function : Reduce Shock
Quality : 100 % Tested
Packing Size : 24*24*24(cm)
Load Type : Compression
Norgren : M/31121
Air Hole : G1/4
Original ContiTech FS 412-10 DS Convoluted Type Air Spring 12X1 Rubber Air Bellows
Product Description
Item: Air Spring/Shock Absorber Spring/Air Bellows
Brand: Contitech
Model Number: FS 412-10 DS
Material: Rubber And Steel
Warranty: 1 Year
MOQ: 10 PCS
Delivery Time: 2-8 Working Days
Payment: T/T, L/C, PayPal, Western Union
ContiTech Part Number: FS412-10
ContiTech Part Number: FS 412-10
ContiTech Part Number: FS412-10 DS
ContiTech Part Number: FS 412-10 DS
ContiTech Part Number: FS412-10 DS G1/2
ContiTech Part Number: FS 412-10 DS G1/2
ContiTech Part Number: FS412-10 DS G1/2 M10
ContiTech Part Number: FS 412-10 DS G1/2 M10
Replace Firestone Part Nunber: W01-R58-4060
Replace Firestone Part Nunber: W01 R58 4060
Replace Firestone Part Nunber: W01R584060
Replace Dunlop Part Number: SP1540
Replace Dunlop Part Number: 12X1
Replace Norgren Part Number: M/31121
Replace Norgren Part Number: M 31121
Replace Norgren Part Number: M31121
Contitech FS 412-10 Air Bag Technical Data
Cover Plate
Top Cover Plate Diameter: Ø260mm |
Bottom Cover Plate Diameter: Ø260mm |
Top Cover Plate Screw (Nut) Tooth: 4XM10 |
Bottom Cover Plate Screw (Nut) Tooth: 4XM10 |
Screw Center Distance Of Top Cover Plate: Ø232mm |
Screw And Gas Hole Distance Of Bottom Cover Plate: Ø232mm |
Air Inlet
Air Inlet: G1/2 |
Rubber Bellow MAX Diameter: 330mm |
The Natural Height: 120mm |
The Working Stroke: MAX 150mm to MIN 50mm |
Pneumatic Application – Atatic cCharacteristic Values
Force F (kN)
pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V(l) |
Height H (mm) | 120 | 11.2 | 15.1 | 18.9 | 22.9 | 27 | 31.4 | 5.5 |
100 | 13.9 | 18.5 | 23.4 | 28.1 | 33.1 | 38.3 | 4.6 | |
80 | 16.5 | 22.1 | 27.6 | 33.4 | 39. | 45 | 3.4 | |
60 | 18.5 | 24.8 | 31 | 37.2 | 43.6 | 50 | 2.2 |
Air Springs/Vibration Isolation
GUOMAT air spring systems provide solutions for mechanical vibration control. They provide solutions from technical design to the coordination of the individual system components. Their natural frequencies are extremely low, ranging from 0.5 to 3.5 Hz, depending on the model. Their load capacities range from 0.5 kN to more than 440 kN, and they can effectively support both light measuring machines and heavy foundations.

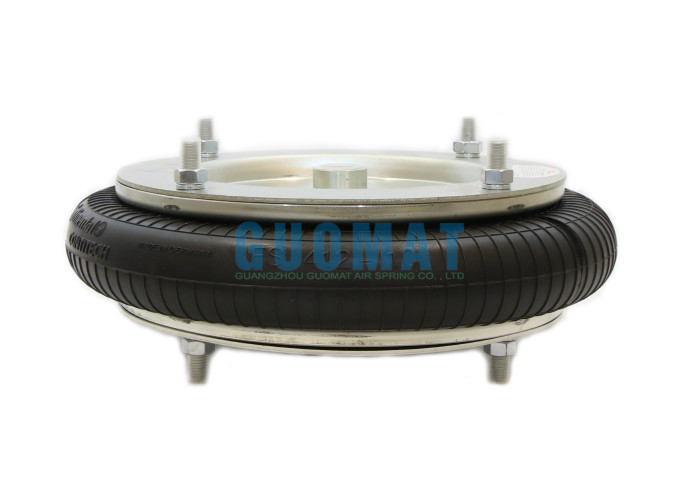

Picture of FD 412-10 Air Spring
![]() |
Original ContiTech FS 412-10 DS Convoluted Type Air Spring 12X1 Rubber Air Bellows Images |
