Replaced Convoluted Air Spring W01-358-8010 Firestone 3B12-301 Goodyear Suspension Air Balloon
Product Description
Product name: Air Spring
Type: Air Suspension/Air bags/Air Ballons
Warranty: One year
Material: Imported Natural Rubber
Placen of origin: Guangzhou, China
Payment term:
T/T&L/C & West Union
Certificate: ISO/TS16949:2009
Cross-Reference Numbers
| Firestone Style | 38 |
| Firestone | W01-358-8010 |
| Contitech | FY330-29 432 |
| Goodyear | 3B12-301 |
| Goodyear | 578-93-3-100 |
| FleetPride | AS8010 |
| Taurus | 6334 |
| Triangle | AS-4432 |
| TRP | AS80100 |
| Automann | SP3B22R-8010 |
OE Manufacturer/Reference Number
| Ridewell | S5844C |
| Loadguard | SC2119 |
| Oshkosh | 8013 |
| Ridewell | 1003588010C |
3B 8010 Air Spring Technical Data
Top Cover Plate Screw (Nut) Tooth :SX3/8-16UNC
Top Cover Plate Diameter: 231 mm
Screw Center Distance of Top Cover Plate : 157.5 m
Distance Between Air Inlet And Bolt of Top Cover Plate Diameter:73mm
Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
Bottom Cover Plate Diameter:231mm
Air Inlet/Gas Hole:1/4NPT
Natural Height: 297mm
The Rubber Bellows Natural Outer Diameter: 295mm
Air springs are indeed a key technology in modern washing machines and in a variety of heavy-duty applications, with their unique benefits:
Why air springs work so well in washing machines:
- Excellent vibration isolation: This is a key function of washing machines, especially high-speed drum washing machines. Air springs significantly reduce the transmission of strong vibrations generated during the spin cycle to the machine frame and surrounding floor/structure. This prevents "walking", reduces noise, and minimizes stress on internal components.
- Load leveling and automatic adjustment: The air pressure in the spring automatically adjusts as the size and distribution of the wash load changes. This keeps the drum in the optimal position relative to the tub/seal and ensures that vibration isolation is always maintained regardless of load size or imbalance.
- Noise reduction: By effectively dampening vibrations, air springs significantly reduce the noise level of washing machines.
- Durability: Made from strong rubber compounds such as EPDM and reinforced with fabric or steel cord, modern air springs are designed to withstand the harsh environment (moisture, detergents, constant movement) of the inner tank of a washing machine for many years.
- Smooth Suspension: They provide a softer, more compliant suspension than traditional coil springs, providing better stability during stirring and spinning.

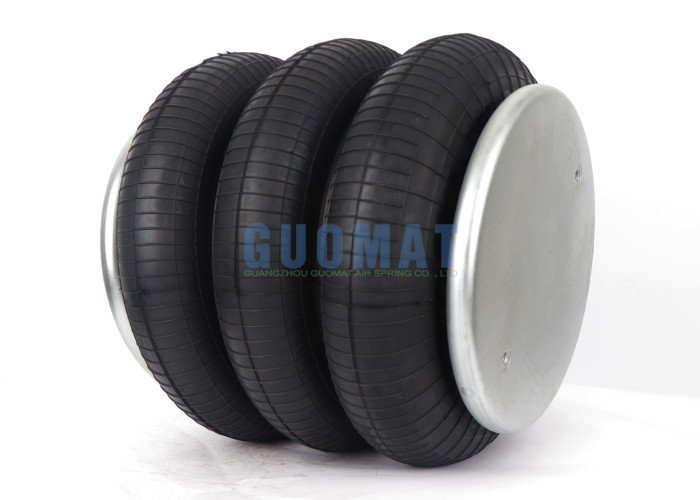

Product Image
